| F HEIGHT | 925mm | 1805mm | 2200mm | ||
| 610mm |
 |
 |
 |
||

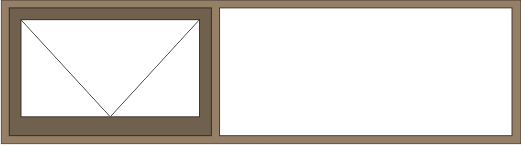

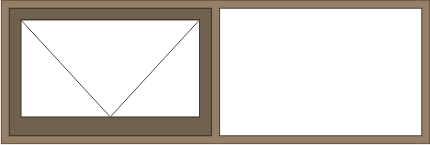

| Catalogue no | F1 | F2 | F4 | ||
| Light area | 0.353 | 0.787 | 0.993 | ||
| Vent Area | 0.434 | 0.434 | 0.434 | ||
| G HEIGHT | 925mm | 1805mm | 2200mm | ||
| 900mm |
 |
 |
 |
||
| Catalogue no | G1 | G2 | G4 | ||
| Light area | 0.558 | 1.234 | 1.554 | ||
| Vent Area | 0.434 | 0.434 | 0.434 | ||
| J HEIGHT | 925mm | 1805mm | 2200mm | ||
| 1485mm |
 |
 |
 |
||

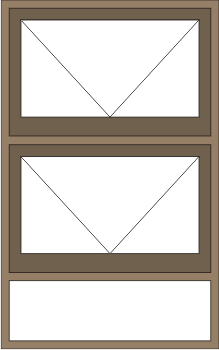

| Catalogue no | J1 | J3 | J4 | ||
| Light area | 0.911 | 2.076 | 2.627 | ||
| Vent Area | 0.868 | 0.868 | 0.868 | ||
| K HEIGHT | 925mm | 1805mm | 2200mm | ||
| 1785mm |
 |
 |
 |
||

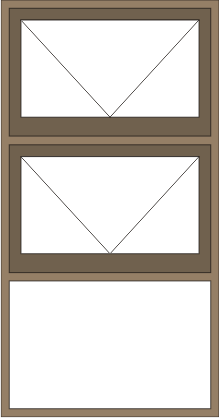

| Catalogue no | K2 | K5 | K8 | ||
| Light area | 1.161 | 2.576 | 3.246 | ||
| Vent Area | 0.868 | 0.868 | 0.868 | ||
